Multicommunicator (working name) — multi-radio gateway for off-network use

The Multicommunicator (working name, final name to be decided) is a handheld multi-radio gateway connecting hunters and dogs beyond cellular coverage. It receives data from Natlink's LoRa trackers, forwards it to the server and relays commands back. It also extends cellular connectivity to the user's phone and serves as a power bank.

Its optimised antenna and transmitter design gives radio performance as high as legally allowed. Built for outdoor use, IP67 waterproof and shock-resistant, it is mounted outside a car window or clipped to a backpack or clothing, high and away from the body. A waterproof power connector also allows fixed mast or tree installation.

In field tests it bridged 89% of the phone's coverage gaps and extended coverage by about 1.5 km, and its roaming SIM works where the phone's cannot. European patent pending.

Natlink developed it using technologies and designs from Sa4CPS work packages: requirements and architecture (WP2), device and tracker prototypes (WP3), secure telematics protocol and digital twin (WP4), security and secure firmware update (WP5), and demonstrations (WP6). Mass production is planned for early 2027; the platform is also intended for other products.

• LTE Cat 1 bis cellular with roaming SIM
• Optimised antenna and transmitter design, radio performance at the maximum legally allowed level
• Designed for outdoor use: IP67 waterproof and shock-resistant

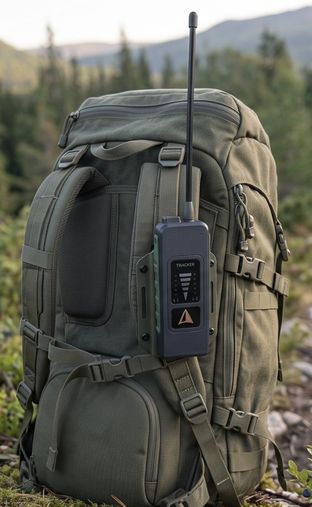

• Designed for mounting outside a car window or with a belt clip on a backpack or clothing, high and away from the body
• Waterproof power connector enabling fixed installation on a mast or tree
• LoRa receiver for Natlink LoRa trackers (2–10 km range depending on tracker and terrain); tracker data forwarded to the server and commands relayed back to the trackers
• Bluetooth LE and Wi-Fi connection to the user's phone
• OTA firmware updates for the device and connected LoRa trackers
• Power bank function with replaceable 18650 battery cells
• Data protection and secure firmware update designed under Sa4CPS WP5 (RED / EN 18031)

Works with Natlink LoRa trackers (EOS, Aura), the WeHunt app (Android, iOS) and Natlink's cloud back-end. Cellular connectivity requires a data subscription.

Hunters and hunting teams in Nordic and European markets, especially in areas with poor cellular coverage. B2B partners who need a rugged field gateway as part of their own products.

Proprietary Natlink product, patent pending. The platform is available to B2B partners under a commercial agreement.
