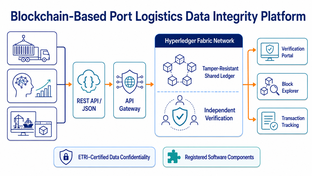

Blockchain-Based Port Logistics Data Integrity Platform

In multi-party port logistics, data exchanged among terminal operators and logistics platforms is vulnerable to disputes when managed by a centralized system. Built on Hyperledger Fabric, this platform enables each stakeholder to independently record and verify logistics transactions across CFS/CY operations on a shared, tamper-proof ledger. Key differentiators: (1) equal, independent verification rights with no central authority; (2) ETRI-certified data confidentiality (TTAK.KO-10.1359); (3) production-ready with three registered software components and granted Korean patent (KR 10-2916863).

• Hyperledger Fabric network: 3 organizations, 9 peers, 47 Docker containers
• Supply chain chaincode: transaction recording, verification, and chain tracking
• RESTful API Gateway with organization-based authentication (registered: C-2025-041312)
• Blockchain engine for transaction recording and verification (registered: C-2025-041313)
• Web portal: block explorer, transaction tracking, organizational dashboards (registered: C-2025-041314)
• CouchDB rich query support for filtered transaction retrieval
• PostgreSQL synchronization for analytics and reporting
• Prometheus and Grafana monitoring stack
• ETRI-certified data confidentiality (TTAK.KO-10.1359, cert: ETRI-2025-3000-064)

• Docker containerized deployment on Linux server
• RESTful API interface with JSON payload format
• API key-based authentication per organization
• Network connectivity between peer nodes required

• Port logistics operators managing CFS/CY operations
• Terminal operating system providers requiring tamper-proof audit trails
• Supply chain platform providers integrating multi-party data verification

Technology transfer through IP licensing from Inje University Industry-Academic Cooperation Foundation
